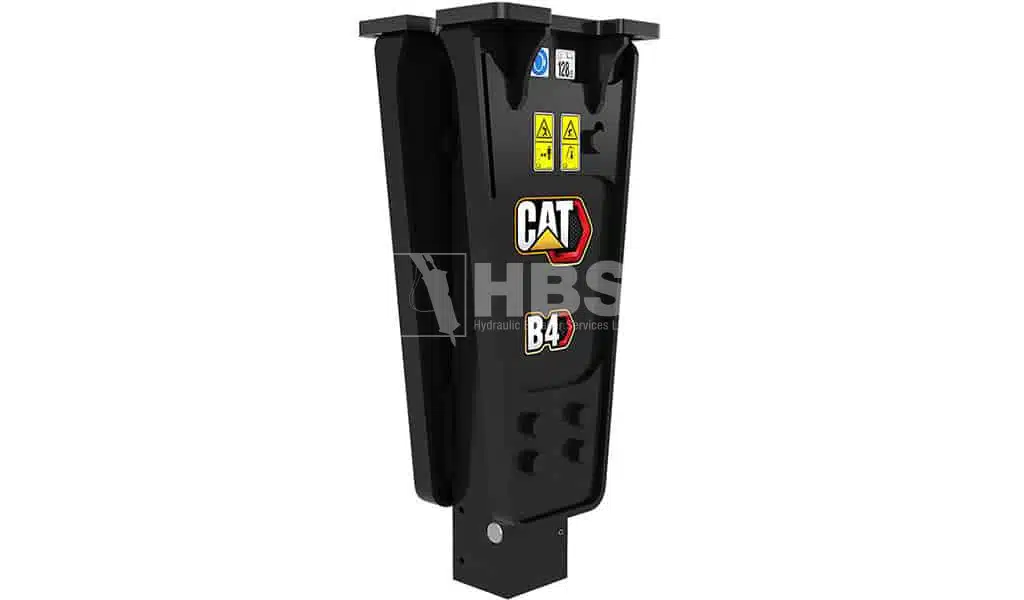

CAT B4 – Non-Silenced Hydraulic Hammer

The CAT B4 is a hydraulic breaker built for contractors, rental fleets, demolition crews, quarry operators, and equipment owners who need a breaker that fits their carrier correctly and delivers reliable output in the field. This model sits in the B-Series range and is well suited for sidewalk removal, curb and gutter work, utility cuts, light landscaping, interior demolition, driveway removal, and similar light breaking tasks. When a breaker is matched correctly to the carrier — by weight class, hydraulic flow, and operating pressure — operators get better production, less unnecessary vibration transmitted back to the machine, reduced wear on the attachment and bracket, and fewer problems with hoses, bushings, retainers, and seals.

The CAT B4 is designed for Minimum 2,540 kg (5,600 lb), with a service weight of 159 kg (350.5 lb). The tool steel diameter is 53 mm (2.1 in), oil flow requirements are 25–50 L/min (6.6–13.2 gpm), operating pressure is Min. 10,286 kPa (1,492 psi), and the impact rate is 600–1,100 BPM. The energy class is 370 J (272.9 ft-lbf). These specifications define where this breaker fits in the lineup. A unit that is too small for the job will force the operator to work the tool harder than intended, causing overheating and premature wear. A unit that is too large for the carrier can create excess hydraulic heat, damage mounting hardware, and shorten the service life of both the hammer and the machine.

Maintenance discipline is as important as correct sizing. A hydraulic hammer operates in some of the most demanding conditions on a jobsite — dust, shock load, side load, heat, moisture, and thousands of impact cycles per hour. Even a well-built breaker will lose performance if the lower bushing wears undetected, the tool is run dry, the seals harden from heat cycling, nitrogen or accumulator pressure drifts out of specification, or hydraulic flow and pressure fall outside the recommended range. Owners should inspect the tool steel, retainers, bushings, tie rods, hoses, fittings, and the grease system on a regular schedule. A properly maintained hammer hits harder, runs cooler, and protects the carrier better than a neglected one. For many contractors, the real value of this model is not the purchase price alone — it is the ability to keep it running through repairable wear rather than replacing the whole breaker.

The design characteristics of the CAT B4 include Cat-style serviceability, carrier protection, practical hydraulic requirements, and a durable housing built for rental and construction fleets. These attributes make it well suited for applications where productivity, controllability, carrier protection, and access to service support all matter. When comparing this model against similar breakers, pay close attention to carrier size match, hydraulic circuit setup, tool steel availability, and the parts support network available in your area. Matching the hammer correctly to the carrier improves efficiency and helps prevent common issues such as weak hitting, slow cycling, tool overheating, premature bushing wear, and cracked mounting hardware.

HBS provides complete support for the CAT B4, including hydraulic hammer repairs, full rebuilds, routine maintenance, and sales. Parts stocked and available for this model include chisels (53 mm (2.1 in) tool steel diameter), tie rods, upper and lower bushings, retainer pins, accumulator diaphragms or membranes, hydraulic seals and seal kits, front head components, and hoses and fittings. Whether this breaker is leaking oil, hitting weak, cycling slowly, overheating, wearing tools too fast, breaking retainers, or due for a full overhaul, HBS can diagnose the issue and return it to working condition. Contact HBS for service pricing, parts availability, rebuild options, and expert guidance on matching this hammer to the right carrier and application.
