Series: DS/CS | Energy: 4,745 J (3,500 ft-lbf) | Carrier: 41,800–70,400 lb (19,000–32,000 kg)

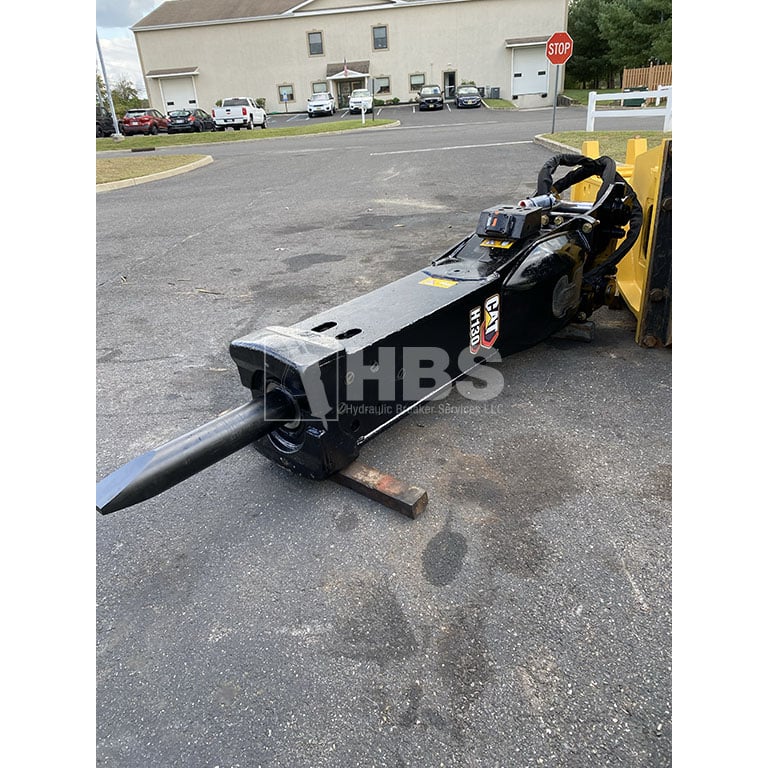

The CAT H130 is a hydraulic breaker built for contractors, rental fleets, demolition crews, quarry operators, and equipment owners who need a breaker that fits their carrier correctly and delivers reliable output in the field. This model sits in the DS/CS range and is well suited for commercial demolition, secondary breaking, road construction, oversize reduction, and heavy trench excavation. When a breaker is matched correctly to the carrier — by weight class, hydraulic flow, and operating pressure — operators get better production, less unnecessary vibration transmitted back to the machine, reduced wear on the attachment and bracket, and fewer problems with hoses, bushings, retainers, and seals.
The CAT H130 is designed for 41,800–70,400 lb (19,000–32,000 kg), with a service weight of 3,740 lb (1,700 kg). Oil flow requirements are 120–220 L/min (32–58 gpm), operating pressure is approximately 14,000 kPa (2,030 psi), and the impact rate is 320–600 BPM. The energy class is 4,745 J (3,500 ft-lbf). These specifications define where this breaker fits in the lineup. A unit that is too small for the job will force the operator to work the tool harder than intended, causing overheating and premature wear. A unit that is too large for the carrier can create excess hydraulic heat, damage mounting hardware, and shorten the service life of both the hammer and the machine.
Maintenance discipline is as important as correct sizing. A hydraulic hammer operates in some of the most demanding conditions on a jobsite — dust, shock load, side load, heat, moisture, and thousands of impact cycles per hour. Even a well-built breaker will lose performance if the lower bushing wears undetected, the tool is run dry, the seals harden from heat cycling, nitrogen or accumulator pressure drifts out of specification, or hydraulic flow and pressure fall outside the recommended range. Owners should inspect the tool steel, retainers, bushings, tie rods, hoses, fittings, and the grease system on a regular schedule. A properly maintained hammer hits harder, runs cooler, and protects the carrier better than a neglected one. For many contractors, the real value of this model is not the purchase price alone — it is the ability to keep it running through repairable wear rather than replacing the whole breaker.
The design characteristics of the CAT H130 include Cat DS/CS series engineering, carrier-protective power cell design, Cat-standard serviceability, and practical hydraulic requirements suited to large and mid-size excavator platforms. These attributes make it well suited for applications where productivity, controllability, carrier protection, and access to service support all matter. When comparing this model against similar breakers, pay close attention to carrier size match, hydraulic circuit setup, tool steel availability, and the parts support network available in your area. Matching the hammer correctly to the carrier improves efficiency and helps prevent common issues such as weak hitting, slow cycling, tool overheating, premature bushing wear, and cracked mounting hardware.
HBS provides complete support for the CAT H130, including hydraulic hammer repairs, full rebuilds, routine maintenance, and sales. Parts stocked and available for this model include chisels, tie rods, upper and lower bushings, retainer pins, accumulator diaphragms or membranes, hydraulic seals and seal kits, front head components, and hoses and fittings. Whether this breaker is leaking oil, hitting weak, cycling slowly, overheating, wearing tools too fast, breaking retainers, or due for a full overhaul, HBS can diagnose the issue and return it to working condition. Contact HBS for service pricing, parts availability, rebuild options, and expert guidance on matching this hammer to the right carrier and application.
Key Features
- Impact energy of 4,745 J (3,500 ft-lbf) at 320–600 BPM positions the CAT H130 for heavy demolition and construction applications where mid-to-large excavators need consistent per-blow energy output across full production shifts without cycling frequency reductions caused by heat buildup
- Cat DS/CS series design integrates directly into Cat excavator auxiliary circuits, maintaining the hydraulic system within design tolerances and protecting the carrier pump, control valve, and return filtration from the elevated thermal load common to improperly matched breaker installations
- Carrier weight range of 41,800–70,400 lb (19,000–32,000 kg) covers a wide band of Cat 320-through-345 excavator configurations, giving fleet managers flexibility to run the same hammer model across multiple carrier sizes with predictable output and wear patterns
- HBS stocks parts for the CAT H130 including chisels, tie rods, upper and lower bushings, retainer pins, accumulator components, hydraulic seal kits, front head parts, and hoses — supporting repairs, rebuilds, and preventive maintenance without extended wait times
Key Specifications & Service Points
- Recommended carrier match: 41,800–70,400 lb (19,000–32,000 kg) — service weight 3,740 lb (1,700 kg)
- Core performance: energy class 4,745 J (3,500 ft-lbf); impact rate 320–600 BPM
- Hydraulic requirements: oil flow 120–220 L/min (32–58 gpm); operating pressure approx. 14,000 kPa (2,030 psi)
- Parts available from HBS: chisels, tie rods, upper and lower bushings, retainer pins, accumulator components, hydraulic seal kits, front head parts, and hoses
