Series: DS/CS | Energy: 14,913 J (11,000 ft-lbf) | Carrier: 88,000–176,000 lb (40,000–80,000 kg)

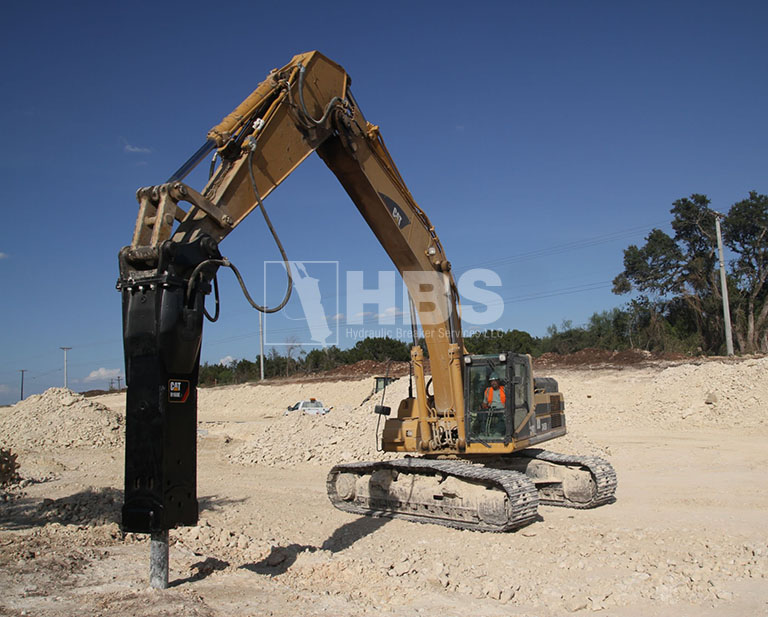

The CAT H180 is a hydraulic breaker built for contractors, rental fleets, demolition crews, quarry operators, and equipment owners who need a breaker that fits their carrier correctly and delivers reliable output in the field. This model sits in the DS/CS range and is well suited for primary rock breaking, quarry operations, large-scale demolition, tunnel support, and high-output production applications. When a breaker is matched correctly to the carrier — by weight class, hydraulic flow, and operating pressure — operators get better production, less unnecessary vibration transmitted back to the machine, reduced wear on the attachment and bracket, and fewer problems with hoses, bushings, retainers, and seals.
The CAT H180 is designed for 88,000–176,000 lb (40,000–80,000 kg), with a service weight of 8,360 lb (3,800 kg). Oil flow requirements are 220–300 L/min (57–78 gpm), operating pressure is approximately 16,000 kPa (2,321 psi), and the impact rate is 370–520 BPM. The energy class is 14,913 J (11,000 ft-lbf). These specifications define where this breaker fits in the lineup. A unit that is too small for the job will force the operator to work the tool harder than intended, causing overheating and premature wear. A unit that is too large for the carrier can create excess hydraulic heat, damage mounting hardware, and shorten the service life of both the hammer and the machine.
Maintenance discipline is as important as correct sizing. A hydraulic hammer operates in some of the most demanding conditions on a jobsite — dust, shock load, side load, heat, moisture, and thousands of impact cycles per hour. Even a well-built breaker will lose performance if the lower bushing wears undetected, the tool is run dry, the seals harden from heat cycling, nitrogen or accumulator pressure drifts out of specification, or hydraulic flow and pressure fall outside the recommended range. Owners should inspect the tool steel, retainers, bushings, tie rods, hoses, fittings, and the grease system on a regular schedule. A properly maintained hammer hits harder, runs cooler, and protects the carrier better than a neglected one. For many contractors, the real value of this model is not the purchase price alone — it is the ability to keep it running through repairable wear rather than replacing the whole breaker.
The design characteristics of the CAT H180 include Cat DS/CS series engineering, practical high-flow hydraulic requirements, Cat-standard serviceability, and a heavy-duty housing built for production-class carriers. These attributes make it well suited for applications where productivity, controllability, carrier protection, and access to dealer service support all matter. When comparing this model against similar breakers, pay close attention to carrier size match, hydraulic circuit setup, tool steel availability, and the parts support network available in your area. Matching the hammer correctly to the carrier improves efficiency and helps prevent common issues such as weak hitting, slow cycling, tool overheating, premature bushing wear, and cracked mounting hardware.
HBS provides complete support for the CAT H180, including hydraulic hammer repairs, full rebuilds, routine maintenance, and sales. Parts stocked and available for this model include chisels, tie rods, upper and lower bushings, retainer pins, accumulator diaphragms or membranes, hydraulic seals and seal kits, front head components, and hoses and fittings. Whether this breaker is leaking oil, hitting weak, cycling slowly, overheating, wearing tools too fast, breaking retainers, or due for a full overhaul, HBS can diagnose the issue and return it to working condition. Contact HBS for service pricing, parts availability, rebuild options, and expert guidance on matching this hammer to the right carrier and application.
Key Features
- Impact energy of 14,913 J (11,000 ft-lbf) at 370–520 BPM positions the CAT H180 for primary rock production and continuous-shift quarry and demolition applications where sustained energy output and carrier longevity must operate in tandem across multi-shift schedules
- Cat DS/CS series configuration delivers proven hydraulic circuit integration on Cat excavator platforms, minimizing auxiliary circuit pressurization issues and allowing the hammer to operate at consistent output levels without pressure spikes that accelerate bushing and seal wear
- Robust tie rod and front head assembly designed for the shock load environment of large-carrier production work, with wear components accessible for field inspection and replacement without removing the breaker from the carrier or disassembling the power cell
- HBS stocks parts for the CAT H180 including chisels, tie rods, upper and lower bushings, retainer pins, accumulator components, hydraulic seal kits, front head parts, and hoses — supporting repairs, rebuilds, and preventive maintenance without extended wait times
Key Specifications & Service Points
- Recommended carrier match: 88,000–176,000 lb (40,000–80,000 kg) — service weight 8,360 lb (3,800 kg)
- Core performance: energy class 14,913 J (11,000 ft-lbf); impact rate 370–520 BPM
- Hydraulic requirements: oil flow 220–300 L/min (57–78 gpm); operating pressure approx. 16,000 kPa (2,321 psi)
- Parts available from HBS: chisels, tie rods, upper and lower bushings, retainer pins, accumulator components, hydraulic seal kits, front head parts, and hoses
