Series: Hammers | Energy: 1,085 J (800.3 ft-lbf) | Carrier: 3–9 t mini excavators / skid steer loaders / backhoe loaders (6,600–19,800 lb)
The CAT H65s is a hydraulic breaker built for contractors, rental fleets, demolition crews, quarry operators, and equipment owners who need a breaker that fits their carrier correctly and delivers reliable output in the field. This model sits in the Hammers range and is well suited for sidewalk removal, curb and gutter work, utility cuts, light landscaping, interior demolition, driveway removal, and similar light breaking tasks. When a breaker is matched correctly to the carrier — by weight class, hydraulic flow, and operating pressure — operators get better production, less unnecessary vibration transmitted back to the machine, reduced wear on the attachment and bracket, and fewer problems with hoses, bushings, retainers, and seals.

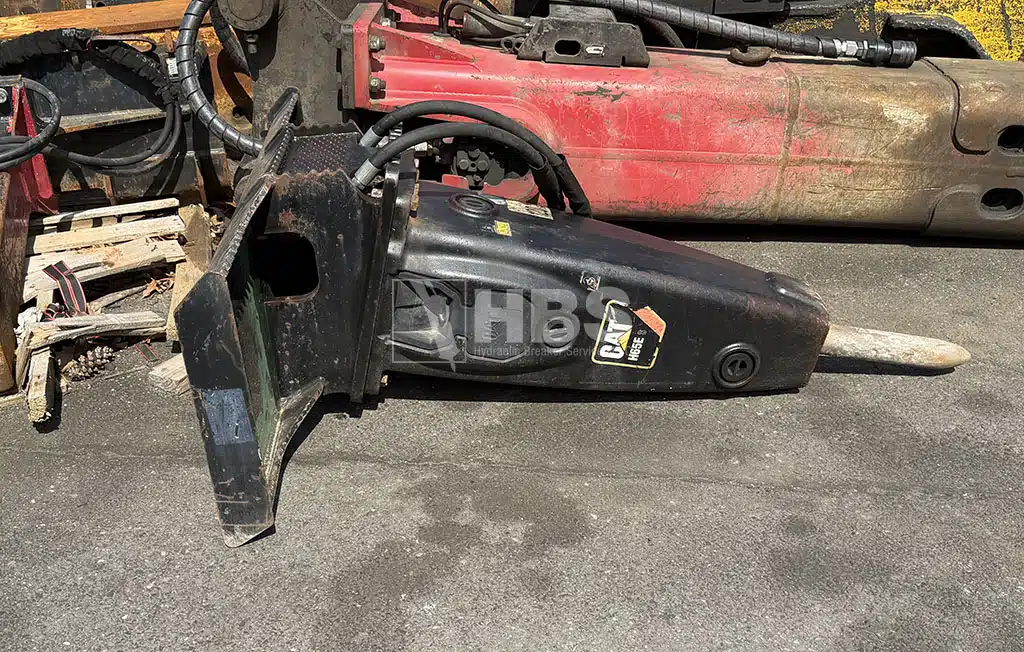

The CAT H65s is designed for 3–9 t mini excavators / skid steer loaders / backhoe loaders (6,600–19,800 lb), with a service weight of 305–390 kg (673–860 lb). The tool steel diameter is 68 mm (2.68 in), oil flow requirements are 40–115 L/min (10–30 gpm), operating pressure is Max 16,500 kPa (2,393 psi), and the impact rate is 720–1,740 BPM. The energy class is 1,085 J (800.3 ft-lbf). These specifications define where this breaker fits in the lineup. A unit that is too small for the job will force the operator to work the tool harder than intended, causing overheating and premature wear. A unit that is too large for the carrier can create excess hydraulic heat, damage mounting hardware, and shorten the service life of both the hammer and the machine.
Maintenance discipline is as important as correct sizing. A hydraulic hammer operates in some of the most demanding conditions on a jobsite — dust, shock load, side load, heat, moisture, and thousands of impact cycles per hour. Even a well-built breaker will lose performance if the lower bushing wears undetected, the tool is run dry, the seals harden from heat cycling, nitrogen or accumulator pressure drifts out of specification, or hydraulic flow and pressure fall outside the recommended range. Owners should inspect the tool steel, retainers, bushings, tie rods, hoses, fittings, and the grease system on a regular schedule. A properly maintained hammer hits harder, runs cooler, and protects the carrier better than a neglected one. For many contractors, the real value of this model is not the purchase price alone — it is the ability to keep it running through repairable wear rather than replacing the whole breaker.
The design characteristics of the CAT H65s include fully enclosed silenced housing, flat top/top-mount style, integral accumulator, and Cat-engineered auto shut-off protecting the power cell from blank-fire wear. These attributes make it well suited for applications where productivity, controllability, carrier protection, and access to service support all matter. When comparing this model against similar breakers, pay close attention to carrier size match, hydraulic circuit setup, tool steel availability, and the parts support network available in your area. Matching the hammer correctly to the carrier improves efficiency and helps prevent common issues such as weak hitting, slow cycling, tool overheating, premature bushing wear, and cracked mounting hardware.
HBS provides complete support for the CAT H65s, including hydraulic hammer repairs, full rebuilds, routine maintenance, and sales. Parts stocked and available for this model include chisels (68 mm (2.68 in) tool steel diameter), tie rods, upper and lower bushings, retainer pins, accumulator diaphragms or membranes, hydraulic seals and seal kits, front head components, and hoses and fittings. Whether this breaker is leaking oil, hitting weak, cycling slowly, overheating, wearing tools too fast, breaking retainers, or due for a full overhaul, HBS can diagnose the issue and return it to working condition. Contact HBS for service pricing, parts availability, rebuild options, and expert guidance on matching this hammer to the right carrier and application.
Key Features
- Impact energy of 1,085 J (800.3 ft-lbf) at 720–1,740 BPM positions the CAT H65s for light-duty breaking on compact carriers where precise energy-to-carrier matching is critical for attachment longevity
- Fully enclosed silenced housing reduces operational noise at the source, making the CAT H65s suitable for urban construction, residential areas, and municipalities with noise ordinances — without sacrificing the Cat-engineered power cell performance inside
- Flat top/top-mount bracket style keeps the breaker force and carrier stick force in line, maximizing transfer of impact energy to the work material and improving operator visibility compared to offset or side-mount configurations
- Cat auto shut-off system stops the piston the moment the tool breaks through material, preventing blank firing — the single largest driver of internal percussion mechanism wear — regardless of operator reaction time or experience level
Key Specifications & Service Points
- Recommended carrier match: 3–9 t mini excavators / skid steer loaders / backhoe loaders (6,600–19,800 lb) — service weight 305–390 kg (673–860 lb)
- Core performance: energy class 1,085 J (800.3 ft-lbf); impact rate 720–1,740 BPM
- Hydraulic requirements: oil flow 40–115 L/min (10–30 gpm); operating pressure Max 16,500 kPa (2,393 psi)
- Parts available from HBS: chisels (68 mm (2.68 in) tool steel), tie rods, upper and lower bushings, retainer pins, accumulator components, hydraulic seal kits, front head parts, and hoses
