Series: HB | Carrier: Approx. 48,000–84,000 lbs (24–42 t)

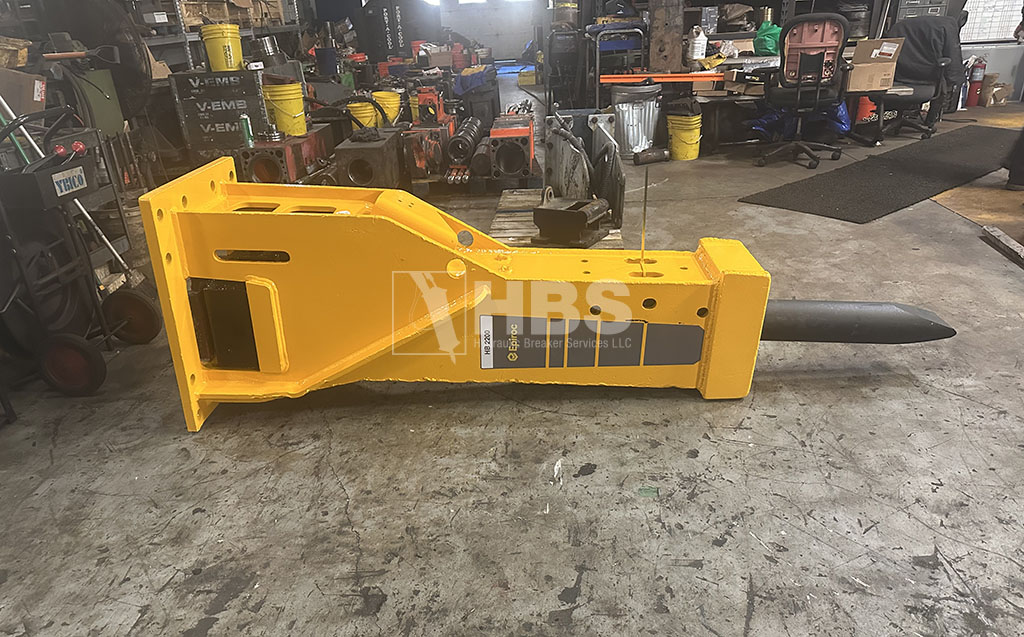

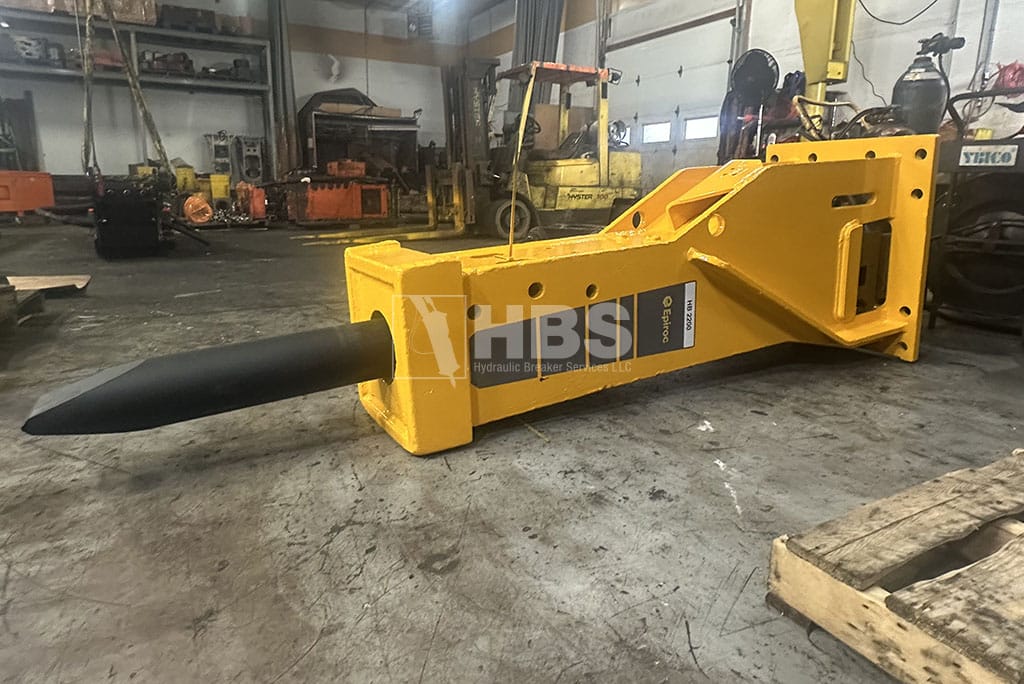

The Epiroc HB 2200 is a hydraulic breaker built for contractors, rental fleets, demolition crews, quarry operators, and equipment owners who need a breaker that fits their carrier correctly and delivers reliable output in the field. This model sits in the Epiroc HB range and is well suited for commercial demolition, secondary breaking, road construction, quarry production, and heavy trench work on large excavators. When a breaker is matched correctly to the carrier — by weight class, hydraulic flow, and operating pressure — operators get better production, less unnecessary vibration transmitted back to the machine, reduced wear on the attachment and bracket, and fewer problems with hoses, bushings, retainers, and seals.
The Epiroc HB 2200 is positioned between the HB 2000 and HB 2500 in the Epiroc HB series, designed for approximately 48,000–84,000 lbs (24–42 t) carrier weight, with a service weight of approximately 4,850 lb (2,200 kg). The tool steel diameter is approximately 150 mm (5.9 in), oil flow requirements are approximately 40–55 L/min (11–15 gpm), operating pressure is approximately 2,320–2,610 PSI, and the impact rate is approximately 290–600 BPM. These specifications define where this breaker fits in the lineup. A unit that is too small for the job will force the operator to work the tool harder than intended, causing overheating and premature wear. A unit that is too large for the carrier can create excess hydraulic heat, damage mounting hardware, and shorten the service life of both the hammer and the machine.
Maintenance discipline is as important as correct sizing. A hydraulic hammer operates in some of the most demanding conditions on a jobsite — dust, shock load, side load, heat, moisture, and thousands of impact cycles per hour. Even a well-built breaker will lose performance if the lower bushing wears undetected, the tool is run dry, the seals harden from heat cycling, nitrogen or accumulator pressure drifts out of specification, or hydraulic flow and pressure fall outside the recommended range. Owners should inspect the tool steel, retainers, bushings, tie rods, hoses, fittings, and the grease system on a regular schedule. A properly maintained hammer hits harder, runs cooler, and protects the carrier better than a neglected one. For many contractors, the real value of this model is not the purchase price alone — it is the ability to keep it running through repairable wear rather than replacing the whole breaker.
The design characteristics of the Epiroc HB 2200 include HB-series ContiLube II automatic lubrication, PowerAdapt hydraulic protection, StartSelect operating frequency control, and full-housing construction for environmental and impact protection during sustained production work. These attributes make it well suited for applications where productivity, controllability, carrier protection, and access to service support all matter. When comparing this model against similar breakers, pay close attention to carrier size match, hydraulic circuit setup, tool steel availability, and the parts support network available in your area. Matching the hammer correctly to the carrier improves efficiency and helps prevent common issues such as weak hitting, slow cycling, tool overheating, premature bushing wear, and cracked mounting hardware.
HBS provides complete support for the Epiroc HB 2200, including hydraulic hammer repairs, full rebuilds, routine maintenance, and sales. Parts stocked and available for this model include chisels (approx. 150 mm tool steel), tie rods, upper and lower bushings, retainer pins, accumulator diaphragms or membranes, hydraulic seals and seal kits, front head components, and hoses and fittings. Whether this breaker is leaking oil, hitting weak, cycling slowly, overheating, wearing tools too fast, breaking retainers, or due for a full overhaul, HBS can diagnose the issue and return it to working condition. Contact HBS for service pricing, parts availability, rebuild options, and expert guidance on matching this hammer to the right carrier and application.
Key Features
- Epiroc HB 2200 fills the gap between the HB 2000 and HB 2500 in the large excavator class, providing a precisely carrier-matched option for 24–42 t excavators where the energy step between adjacent models would otherwise result in under-performing or over-matched installations on machines in the middle of this weight range
- Epiroc ContiLube II automatic greasing system eliminates operator-dependent lubrication scheduling by delivering metered grease quantities to the front head bushing at programmable intervals throughout the shift, maintaining continuous lubrication under the high contact pressures generated during sustained 290–600 BPM production operation on quarry and demolition applications
- Epiroc PowerAdapt monitors hydraulic inlet pressure and adjusts internal operating parameters to maintain consistent blow energy output within the carrier’s available flow envelope, protecting both the HB 2200 power cell and the carrier pump from the accelerated wear cycle caused by running at partial hydraulic flow during normal excavator auxiliary circuit pressure variations
- HBS stocks parts for the Epiroc HB 2200 including chisels (approx. 150 mm tool steel), tie rods, upper and lower bushings, retainer pins, accumulator components, hydraulic seal kits, front head parts, and hoses — supporting repairs, rebuilds, and preventive maintenance without extended wait times
Key Specifications & Service Points
- Recommended carrier match: approx. 48,000–84,000 lbs (24–42 t) — service weight approx. 4,850 lb (2,200 kg)
- Core performance: tool steel approx. 150 mm (5.9 in); impact rate approx. 290–600 BPM
- Hydraulic requirements: oil flow approx. 40–55 L/min (11–15 gpm); operating pressure approx. 2,320–2,610 PSI
- Parts available from HBS: chisels (approx. 5.9 in. tool steel), tie rods, upper and lower bushings, retainer pins, accumulator components, hydraulic seal kits, front head parts, and hoses
